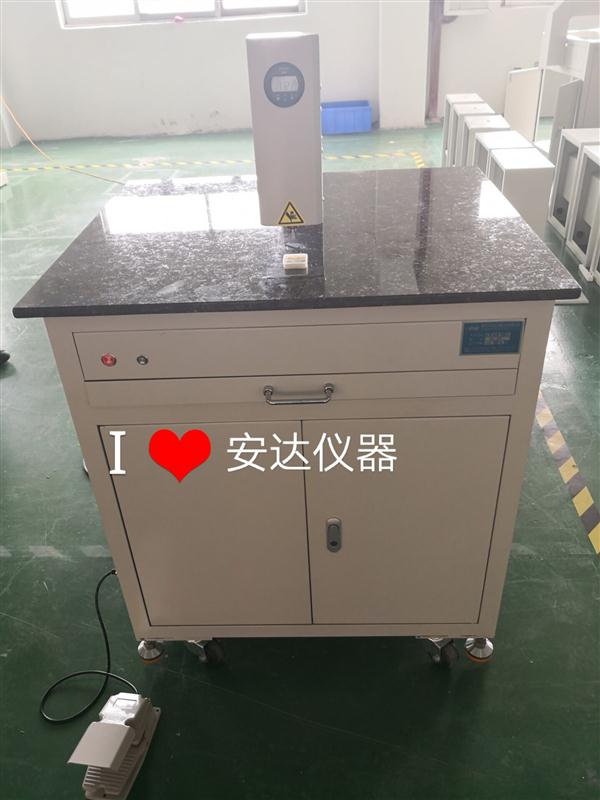

長臂板厚測試儀AD-288
Long arm Measuring machine
介紹：Introduction：
長臂板厚測試儀主要用于覆銅層壓板和多層板壓層后的厚度測量,以及其它板材厚度的測量。配置有計算機對測量數據進行自動記錄儲存,使用專業 SPC 過程控制軟件,高精度日本原裝進口數顯表、可對測量數據進行全方位 的過程控制數據分析。Long arm thickness measuring machine is mainly used to measure the thickness of copper clad laminate and multilayer plate after lamination, as well as other plate thickness measurement. Equipped with a computer for automatic recording and storage of measurement data, professional SPC process control software, highprecision imported digital display meter from Japan, can be used for all-round process control data analysis of measurement data.
特點：
1 喉深大,能對大型板材中間部位的厚度進行測量。
The throat is deep and large enough to measure the thickness of
the middle part of large plates.
2 采用日本原裝進口數顯千分表，測量精度高。
Adopt the original imported digital display meter from Japan, with
high measurement accuracy.
3 能進行 mm/inch 公制、英制單位切換，數據液晶屏幕顯示。
Able to switch between mm/inch metric and inch units,
and display the data on the LCD screen
4 配有夜間照明燈，適合多點場地及多種顏色的PCB板。
Equipped with night lighting, suitable for multi-site and multi-color PCB board.
5 桌面為花崗巖,美觀高檔、表面耐磨。
The table top is granite, beautiful and high-grade, wear-resistant surface.
6 性能穩定可靠、操作簡單、配套數據分析軟件。
stable and reliable performance, simple operation, supporting data analysis software.
7 特別的顯示器炫掛設計，節省空間多角度可觀看。
Special display display design, saving space and viewing from multiple angles
參數：
|
型號 Model
|
AD-288
|
|
Appearance(Width * Depth * Height :mm) 外形(寬*深*高)
|
910(L)*880(W)*1250(H)mm
|
|
Throat depth(mm)(喉深)
|
530 mm (特殊要求可定制）
|
|
Thickness testing range(mm)(板厚測量范圍)
|
0~8mm (特殊要求可定制）
|
|
顯示精度 Display precision
|
公制0.000mm英制 0.00000可切換
|
|
測量方式 Measuring way
|
上頂針加下壓板
|
|
Desktop Size(mm)(桌面尺寸)
|
800×700mm
|
|
Testing Accuracy(mm)(測量精度)
|
±0.003mm
|
|
Rated voltage/rated power(額定電壓/額定功率)
|
AC220V 50Hz/ 500W
|
|
工作臺面
|
天然大理石
|
|
照明
|
配夜間LED照明燈
|
|
Weight(Kg)(重量)
|
150kg
|
|
Air supply 氣源(Mpa)
|
0.25-0.35Mpa
|
|
Computer(電腦)
|
DELL （選配）
|
|
Data analysis software(數據分析軟件)
|
SPC （選配）
|
|
其它尺寸可訂制
|
深圳市安達儀器儀表有限公司
地址：深圳市福田區彩田北路祥泰寧的士碼頭大廈四樓809
聯系人：何小姐
手機號：13420947400（微信同步）
電話：0755-82952800
傳真：0755-83272880
郵箱:andasz@126.com
QQ:664521572
https://andayqsz.1688.com/
www.m.cshxy.cn
